GPS Vehicle Tracker-1052G |
 |
 |
 |
VT-1052G |
|
Overview

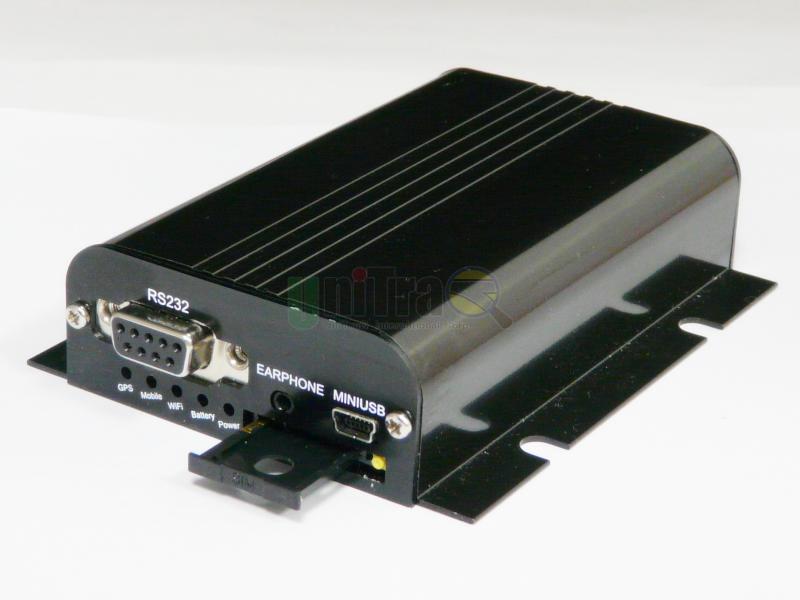

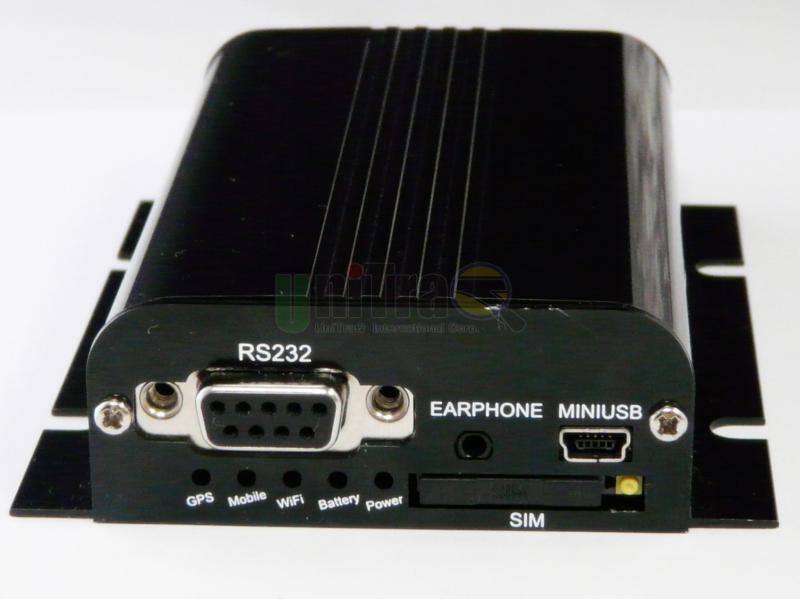

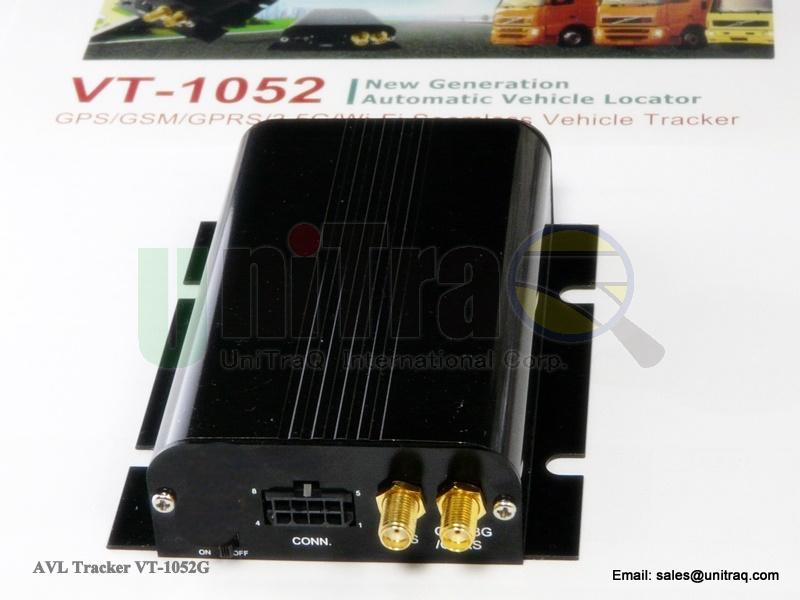

VT-1052G (GPS vehicle tracker) is a versatile and economical platform for mobile applications. It integrates UniTraQ GPS module with Quad-band GSM and powerful microcontroller all onto a single board. The AVL, VT-1052G (GPS vehicle tracker) provides reliable Real Time vehicle GPS positions anytime anywhere in the world, with the correct position and status of vehicles from remote locations on computer displayes maps.
Features
-
Supports Quad-band GSM (GSM850/EGSM900/DCS1800/PCS1900 MHz ) operation
-
Java platform MIDP_2.0 virtual machine for easy and fast application development
-
GPRS multi-slot class 10 and mobile station class B
-
Supports TCP/UDP
-
Real-time vehicle status monitoring
-
Management capability through SMS, GPRS
-
Supports speaker and microphone interface
-
3 Bi-directional digital IO ports and 3 Analogue ports
-
1 RS232 interface with DB9 connector for Java program updating
-
Additional 2 RS232 interfaces for data communication with external devices
-
1 USB host interface for USB device connection
-
Power supply and low battery detection acknowledge
-
Support sleeping mode
-
4 LED indicators for Power,Battery Charging, Mobile, GPS status
-
Built in Tri-axial G-sensor to report motion or accident sensing, sensitivity range ±4G
-
Built-in 1100mAh Recharge battery
|
|
Parameter
|
Specification
|
Platform |
Java, MIDP 2.0 |
Pwer Supply |
9~40 VDC |
Power Consumption |
Sleeping mode: 20 mA(Typical)
GPRS class 10: 150mA(Ave)
|
Firmware Upgrade |
RS232 interface, by the air interface |
Function Setting |
RS232 interface, by the air interface |
SIM card type |
1.8V, 3V |
LEDstatus Indicator |
Power, Battery charging, Mobile, GPS |
Serial port interface |
1 RS232 interface for Menu interface and configurations
2 RS232 optional for data communications
USD host interface
|
I/O Ports |
3 Bi-directional digital IO and 3 Analogue ports input (~23V) |
GPRS/GSM Specifications
Parameter |
Specification |
Frequency |
Quad band GSM/GPRS 850/900/1800/1900MHz |
Output Power |
Class 4(2W) for EGSM 850 and 900
Class1(1W) for GSM 1800 amd 1900
|
Protocol support |
TCP/UDP |
GPRS Multi-slot |
Class 10 |
GPRS Mobil station |
Class B |
Coding scheme |
CS1, CS2, CS3, CS4 |
PBCCH support |
Yes |
USSD support |
Yes |
Downlink/ /uplink max |
85.6 Kbps/42.8 kbps(GPRS) |
GPS Specifications
Parameter |
Specification |
Protocol |
NMEA 0183 Ver3.01 |
Receiver channels/ Fixing method |
50 channels all on view |
Acquisition sensitivity |
-144 dBm |
Tracking sensitivity |
-160 dBm |
Receiver frequency |
1575.42 MHz L1 C/A Code |
Accuracy
(1) Position
(2) Datum
|
2.5m CEP
WGS-84 (Default)
|
Time To First Fix
(1) Cold start
(2) Warm start
(3) Hot start
|
29 Sec (typ)
29 Sec (typ)
1 Sec (typ)
|
Dynamic condition |
4G (39.2m//sec2) |
Interface condition |
UART |
Operational Limits
(1) Altitude
(2) Velocity
|
<50,000m
<500m/s
|
Bit rate |
9600 bps |
Start bit |
1 bit |
Stop bit |
1 bit |
Data bit |
8 bit |
Parity |
None |
Output sentences |
GGA, GLL, GSA, GSV, VTG, TXT |
Refresh time |
1 sec (Max.:4Hz) |
|
 |
|
 |
