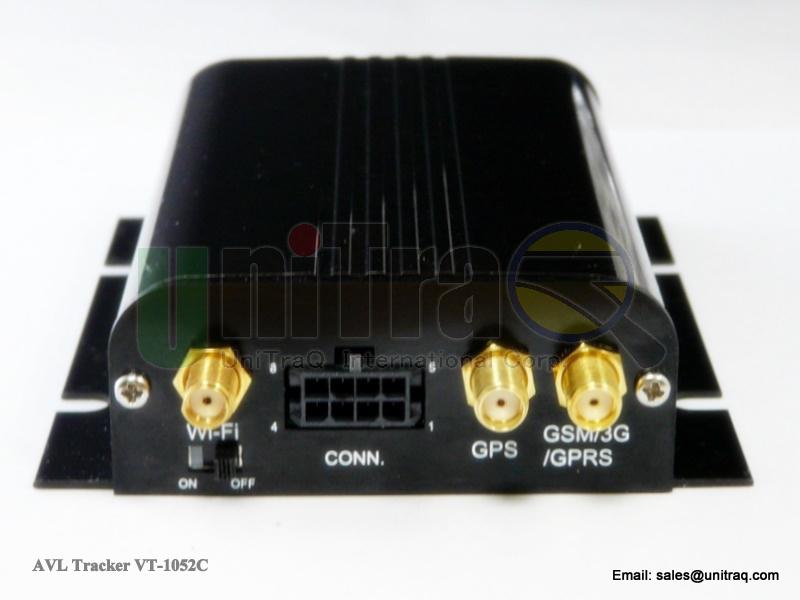

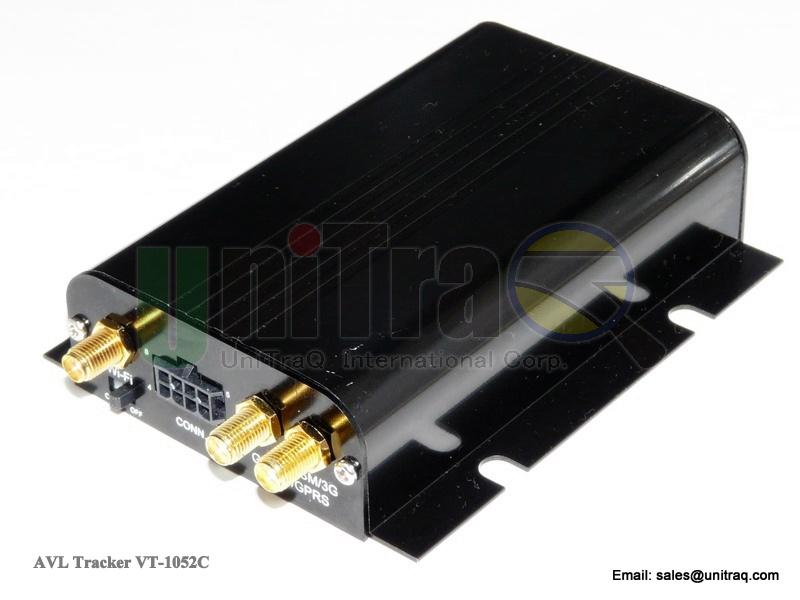

VT-1052C |
|
Overview
UniTraQ's next generation 3G AVL, VT-1052C (3G vehicle tracker) is a 3G vehicle tracker. It is a versatile and economical platform for mobile positioning applications. It integrates UniTraQ GPS module with Quad-band GSM and Tri-band WCDMA network communication module and powerful microcontroller all onto a single board. The VT-1052C (3G vehicle tracker) provides high-speed link functionality by WCDMA cellular interfaces. It is enclosed in a solid casing for easy installation.
Features
-
Supports Quad-band GSM/GPRS/EDGE (850/900/1800/1900) operation
-
Supports Tri-band WCDMA (850/1900/ 2100) operation
-
Java platform MIDP_2.0 virtual machine for easy and fast application development
-
Supports TCP/UDP/HTTP
-
Real-time vehicle status monitoring
-
Management capability through SMS, GPRS,HSDPA
-
3 Bi-directional digital IO ports and 3 Analogue ports with voltage to 12V
-
1 RS232 interface with DB9 connector for Java program updating
-
Additional 2 RS232 interfaces for data communication with external devices
-
1 USB host interface for USB device connection
-
Power supply and low battery detection acknowledge
-
Support sleeping mode
-
4 LED indicators for Power, Battery Charging, Mobile, GPS status
-
Built in Tri-axial G-sensor to report motion or accident sensing, sensitivity range ±4G
-
Built-in 1100mAh Recharge battery
|
|
General Specifications
Parameter |
Specification
|
Platform |
Java, MIDP 2.0 |
Power Supply |
9~40 VDC |
Power Consumption |
Sleeping mode:20 mA(Typical)
HSDPA:350mA
|
Firmware upgrade |
RS232 interface, by the air interface |
Function Setting |
RS232 interface, by the air interface |
SIM card type |
1.8V, 3V |
LED Status Indivator |
Power, Battery charging, Mobile, GPS |
Serial port interface |
1 RS232 interface for Menu interface and configurations
2 RS232 optional for data communications
USV host interface
|
IO Ports |
3 Bio-directional IO and 3 Analogue Input ports(~12V) |
GSM/GPRS/CDMA/HSDPA Specifications
Parameter
|
Specification
|
Frequency |
Quad band GSM/GPRS 850/ 900/ 1800/ 1900 MHz
Tri-band WCDMA/HSDPA 850/ 1900/ 2100 MHz
|
Output Power |
Class 4(2W) for EGSM 850 and 900
Class 1 (1W) for GSM 1800 and 1900
Class 4 (2W) for WCDMA 1900 and 2100
|
Protocol Support |
TCP/UDP |
GPRS Multi-slot |
Class 10 |
GPRS Mobil station |
Class B |
Coding scheme |
CS1, CS2, CS3, CS4 |
PBCCH support |
Yes |
USSD support |
Yes |
Downlink/ Uplink max |
85.6 Kbps/42.8kbps(GPRS)
3.6Mbps/384 kbps (WCDMA)
|
GPS Specifications
Parameter
|
Specification
|
Protocol |
NMEA 0183 Ver3.01 |
Receuver channels/ Fixing method |
50 channels all in view |
Acquisition sensitivity |
-144 dBm |
Tracking sebsitivity |
-160 dBm |
Receiver frequency |
1575.42MHz L1 C/A Code |
Accuracy
(1) Position
(2) Datum
|
2.5m CEP
WGS-84 (Default)
|
Time To First Fix
(1) Cold start
(2) Warm start
(3) Hot start
|
29 Sec(typ)
29 Sec(typ)
1 Sec(typ)
|
Dynamatic condition |
4G (39.2m/ sec2) |
Interface |
UART |
Operational Limits
(1) Altitude
(2) Velocity
|
<50,000m
<500m/s
|
Bit rate |
9600 bps |
Start bit |
1 bit |
Stop bit |
1 bit |
Data bit |
8 bit |
Parity |
None |
Output sentences |
GGA, GLL, GSA, GSV, RMC, VTG, TXT |
Refresh time |
1 sec (Max.:4Hz) |
|
 |
|
 |
