GPS Wi-Fi Tracker-1052W
  • Overview
  • Specification

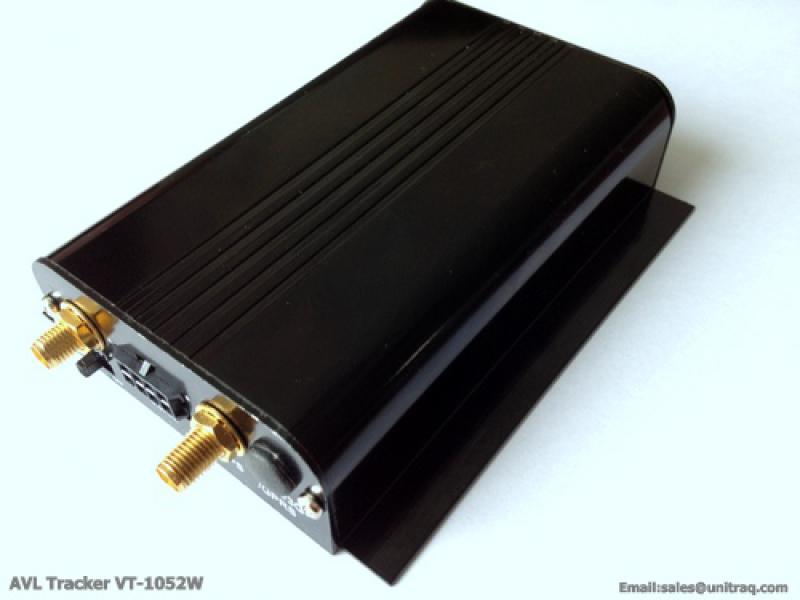

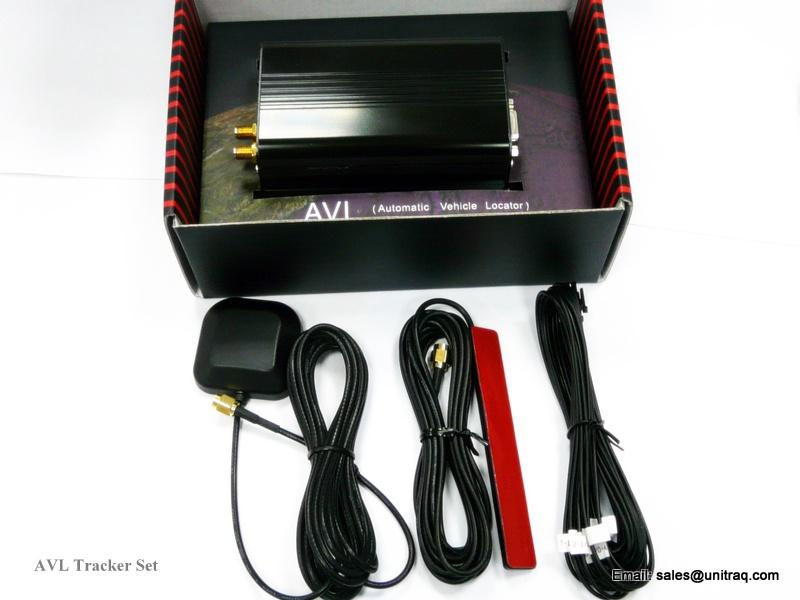

UniTraQ’s next generation AVL, VT-1052W (GPS Wi-Fi
tracker) is a versatile and economical platform for GPS
and WLAN positioning applications. It integrates
UniTraQ GPS module with WiFi wireless interface
networkcommunication module and powerful
microcontroller all onto a single board. The VT-1052W
(GPS Wi-Fi tracker) provides economic and
high-speed link functionality by WLAN interfaces.
It is enclosed in a solid casing for easy
installation. Many applications request high
bandwidth can be implemented by this new
generation AVL tracking device.


• WLAN Compliant to 802.11b/g/n
• Netwrok scan and log in automatically
• 10 sets of SSID in memory for netwrok connection
• Supports WPA2- (AES), WEP (64 and 128 bit) modes of security
• GPS 50 channels all-in-view tracking with AGPS supported.
• GPS high sensitivity -162 dBm
• Java platform MIDP_2.0 virtual machine for easy and fast application development
• Supports TCP/UDP/HTTP
• Configurable data reporting and status monitoring
• Management capability through wireless internet
• Data logger capability with built-in flash memory to record time stamp, position and event
• Data re-send while netwrok available
• WiFi positioning supporting
• 3 Bi-directional digital IO ports and 3 Analogue ports with voltage to 12V
• 1 RS232 interface with DB9 connector for Java program updating
• Additional 2 RS232 interfaces for data communication with external devices
• 1 USB host interface for USB device connection
• Over speed, low battery notification capability.
• Power supply and low battery detection acknowledge
• Support sleeping mode
• Over the air(OTA) firmware update
• 4 LED indicators for Power, Battery Charging, WLAN, GPS status
• Built in Tri-axial G-sensor to report motion or accident sensing, sensitivity range ±4G
• Built-in 1100mAh Recharge battery


General Specifications



Platform JAVA, MIDP 2.0
Power Suppler 9~40 VDC
Power Consumption

Sleeping mode:20 mA (Typical)


Firmware Upgrade RS232 interface, by the air interface
Function Setting RS232 interface, by the air interface
LED Status Indicator Power, Battery Charge, WLAN, GPS
Serial port interface

1 RS232 interface for Menu interface and configurations

2 RS232 optioanl for data communications

USB host interface

I O port 3 Bi-directional digital IO and 3 Analogue input ports (~12V)
