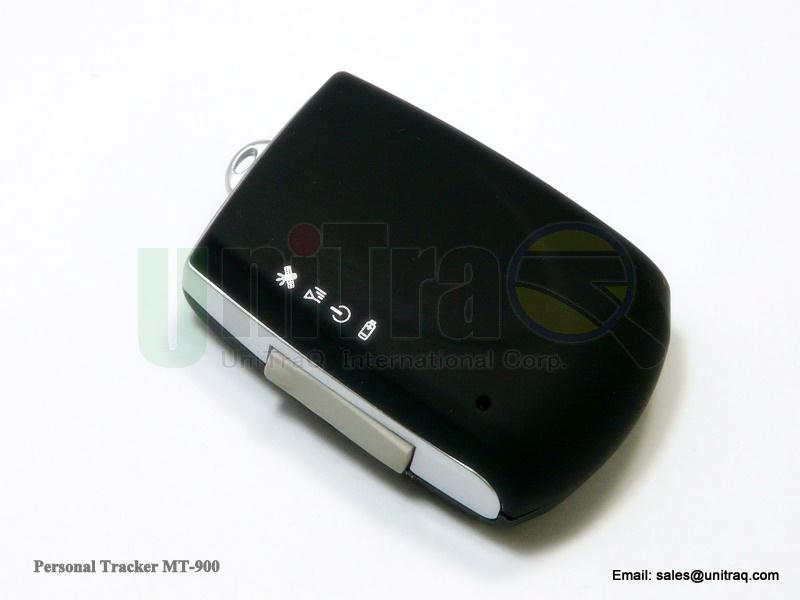

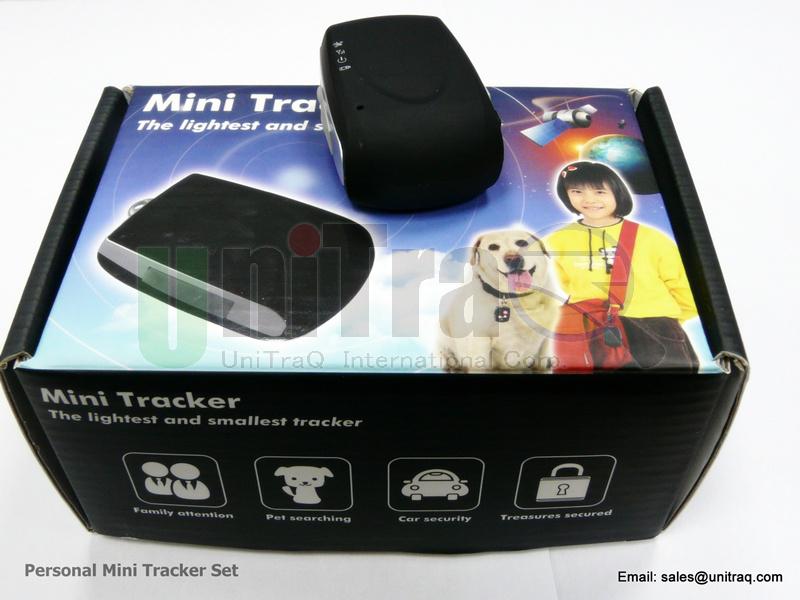

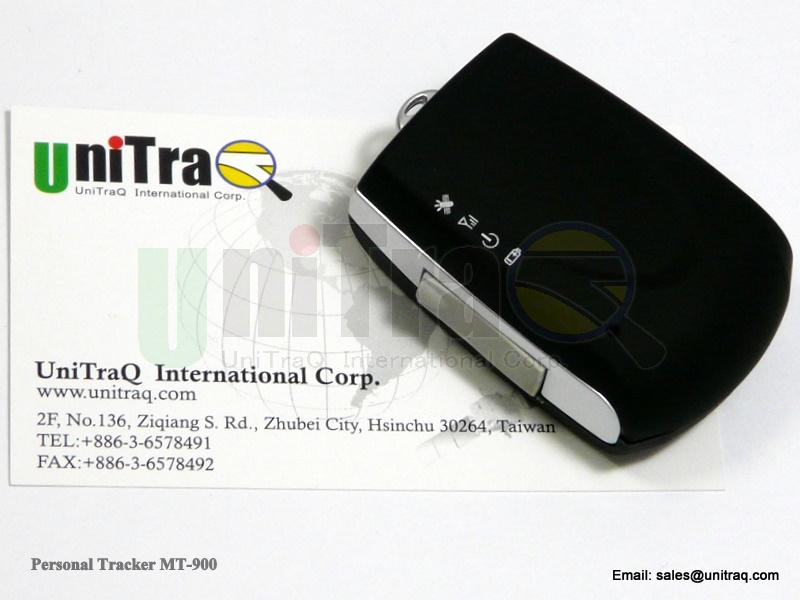

Personal Mini Tracker-MT-900 |
 |
 |
 |
| MT-900 |
|
Overview
The MT-900 (personal mini tracker) is a portable compact tracking device for personal safety and asset monitoring. It combines high sensitivity GPS and quad band GSM/GPRS to perform the powerful security application.
The MT-900 (personal mini tracker) can, based on quad band GSM/GPRS 850/900/1800/1900 network and GPS satellite positioning system, track far-way objects conveniently by Short Message or internet. It can be used for child protection, anti-kidnapping, vehicle tracking, pets go out tracking, panic assistant for the aged, and much more.
Features
-
Available Quad band GSM/GPRS 850/900/1800/1900 MHz
-
GPS 50 channels all-in-view tracking with AGPS supported.
-
GPS high sensitivity -160 dBm.
-
Real time dynamic reporting based on time interval.
-
Data logger capability built in with 4Mega bytes flash memory to record time stamp, position and event status.
-
3D G-sensor to report motion sensing, accident from ±4G.
-
Remote command control by SMS or GPRS network (supporting TCP/UDP).
-
Cell ID positioning supported.
-
Emergency call and notification, plus SMS sending location.
-
Geo-fence capability with out of fencing notification.
-
Over speed notification capability.
-
Low battery notification capability.
-
Power management for low power consumption.
-
Surrounding audio monitoring capability.(option)
-
Mini USB for charging and data exchanging.
-
Personal service center program support.
-
Over the air(OTA) firmware update
|
|
General Specification
|
Parameter |
specification |
|
Operating Voltage |
3.4 V |
|
Operating Temperature |
-20 ℃ ~ +60 ℃ |
|
Storage Temperature |
-40 ℃ ~ +85 ℃ |
|
Power Consumption |
Normal 150 mA |
|
Idle mode < 6 mA |
|
Battery |
600mAh |
|
USB Power Input |
5V, 500mA |
|
Battery Voltage |
Min:3.4V, Typ:3.7V, Max:4.2V |
|
SIM card type |
1.8V, 3V |
|
LED Status Indicator |
Charge/Power/ GPRS/GPS |
|
Dimension |
53 x 37 x 20 mm |
|
Weight |
39g |
|
Frequency |
Quad band 850MHz/900MHz/1800MHz/1900MHz |
|
Output power |
Class 4(2W) for EGSM 850 and 900 Class 1(1W) for GSM 1800 and 1900 |
|
Protocol support |
TCP/UDP |
|
GPRS Multi-slot |
Class 10 |
|
GPRS Mobile station |
Class B |
|
Coding scheme |
CS1,CS2,CS3,CS4 |
|
Downlink/ Uplink max. |
85.6Kbps/42.8 kbps |
|
Operating temperature |
-30 ℃~ +85 ℃ |
|
Storage temperature |
-40 ℃~+85 ℃ |
|
Current consumption |
Idle mode: <1.6 mA GSM : < 300mA GPRS (2Tx,3Rx power level 10): < 410mA |
|
Frequency |
L1, 1575.42MHz |
|
Channels |
50 channel all in view |
|
Acquisition sensitivity |
-142dBm |
|
Tracking sensitivity |
-159dBm |
|
TTFF hot start warm start cold start |
< 1 sec < 36 sec < 36 sec |
|
Signal Reacquisition |
<1s |
|
Update Rate |
1Hz (standard) |
|
Tracking current |
40mA |
|
Operating temperature |
-40℃ ~ +85℃ |
|
Datum |
WGS-84(Default) |
|
Protocol |
NMEA-0183 V3.01 |
|
Dynamics |
4G (39.2m/sec2) |
| |
 |
|
 |
