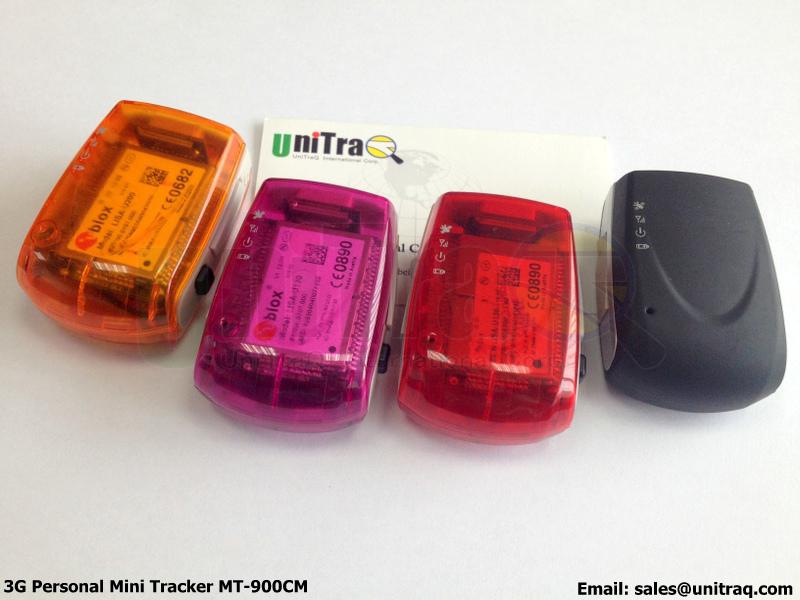

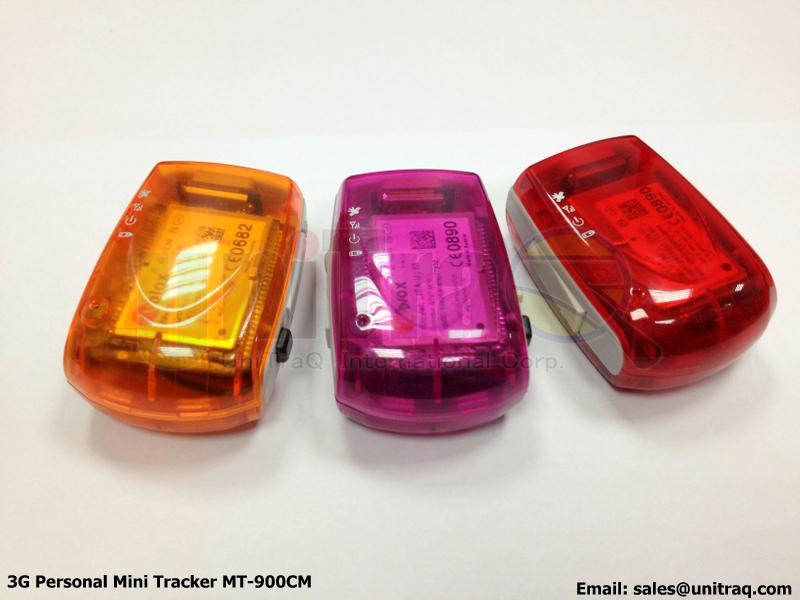

3G Mini Tracker for Phone
MT-900CM
  • Overview
  • Specification


Overview

The MT-900CM( Personal mini tracker )  is a portable compact tracking device for personal safety and asset monitoring. It combines high sensitivity GPS and GSM/GPRS( 850/ 900/ 1800/ 1900 MHz) / EDGE/ WCDMA/ HSPA to perform the powerful securityapplication.Based on quad band GSM/GPRS and WCDMA/HSPA network, and GPSsatellite positioning system, the device (Personal mini tracker) track far-way objects conveniently by Short Message or internet. With the compact size and powerful functions, it can be used for child protection, anti-kidnapping, vehicletracking; pets go out tracking, panic assistant for the aged people, and much more.

MT-900CM (Personal mini tracker) is specially designed to work with smartphone. With the APP software, the smartphone will be your tracking center to manage the trackers, MT-900CM. The MT-900CM and smartphone willcommunicate and transfer data by SMS. Without backend server or service provider, the user can savecost and monthly fee. It will also keep your privacy in safety. MT-900CM will be your best choice intracking applications.

Features

  •  3.75G WCDMA/UMTS/HSPA communications
  •  Available Quad band GSM/GPRS 850/900/1800/1900 MHz
  •  GPS 50 channels all-in-view tracking with AGPS supported.
  •  GPS high sensitivity -162 dBm.
  •  Real time dynamic reporting based on time interval.
  •  Remote command control by SMS.
  •  Emergency call and notification, plus SMS sending location.
  •  Cell ID positioning supporting
  •  Geo-fence capability with out of fencing notification.
  •  Over speed notification capability.
  •  Low battery notification capability.
  •  Power management for low power consumption.
  •  Mini USB for charging and data exchanging.
  •  Data logger capability built in with 4Mega bytes flash memory to record time stamp, position and event status.
  •  Surrounding audio monitoring capability.(option)
  •  3D G-sensor to report motion sensing, accident from ±4G.
  •  Smartphone APP software to manage


General Specification

Parameter Specification
Operating Voltage 3.4V
Operating Temperature -20℃ ~+60℃
Storage Temperature -40℃ ~+85℃
Power Consumption

Normal 180mA

Idle mode < 3mA (with mobile idle)

Battery 500mAh
USB Power

Input 5V, 500mA

Battery Voltage Min:3.4V, Type:3.7V, Max: 4.2V
SIM card type 1.8V, 3V
SIM card holder type Push-push type
LED Status Indicator Emergent Alarm/Charge/Power/Mobile/GPS
Dimension 53*37*20mm
Weight 39g
